Brackets

Hoop claws, collar hooks and rim clips for both wooden bass drum and metal tom hoops and rims.

Jump to Section:



Camco

Camco floor tom leg cymbal arm bracket
Camco floor tom leg/cymbal arm bracket, 1960s-70s
Camco floor tom leg cymbal arm bracket
2 1/4", fits a 3/8" diameter arm or leg
Camco leg/arm bracket, 1960s-70s
Camco leg/arm bracket, 1960s-70s. These were used for tom arms as well as both round and square bass drum spurs.
Camco leg/arm bracket, 1960s-70s
2 3/4", fits a 3/8" diameter arm or leg.

CB700

CB700 bass drum tom post bracket mount
CB700 tom post bracket, 1970s-80s
CB700 bass drum tom post bracket mount hole spacing
3-1/8", fits 3/4" diameter arms
CB700 bass drum tom post bracket mount hole spacing
1-9/16"

Fibes (Corder, Darwin)

Fibes floor tom leg bracket mount
Fibes floor tom leg bracket, 1970s-80s
Fibes floor tom leg bracket mount hole spacing
1-13/16", fits a 3/8" diameter leg. The key bolt is 12-24 thread.

Gracy

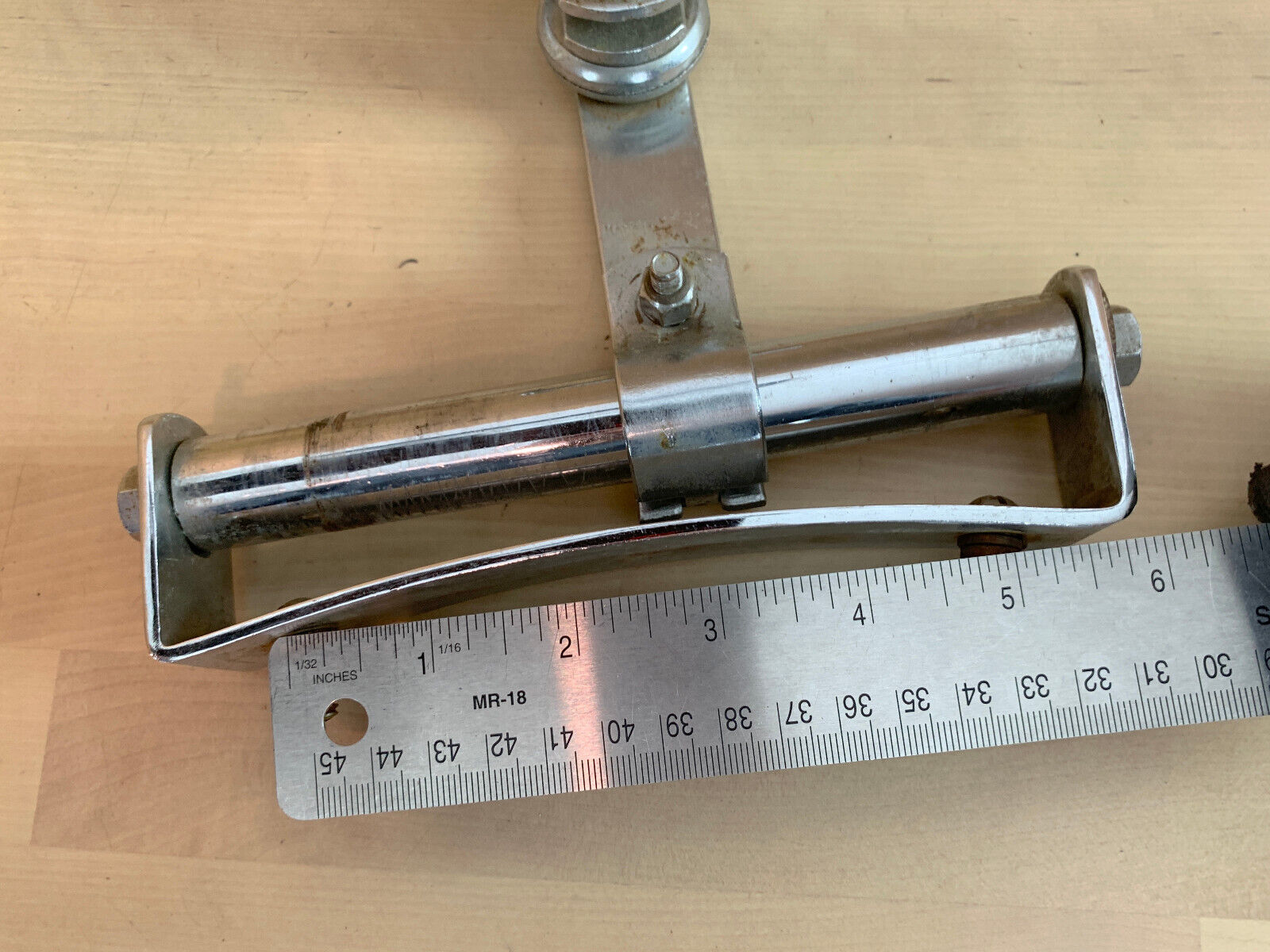

Gracy consolette rail mount

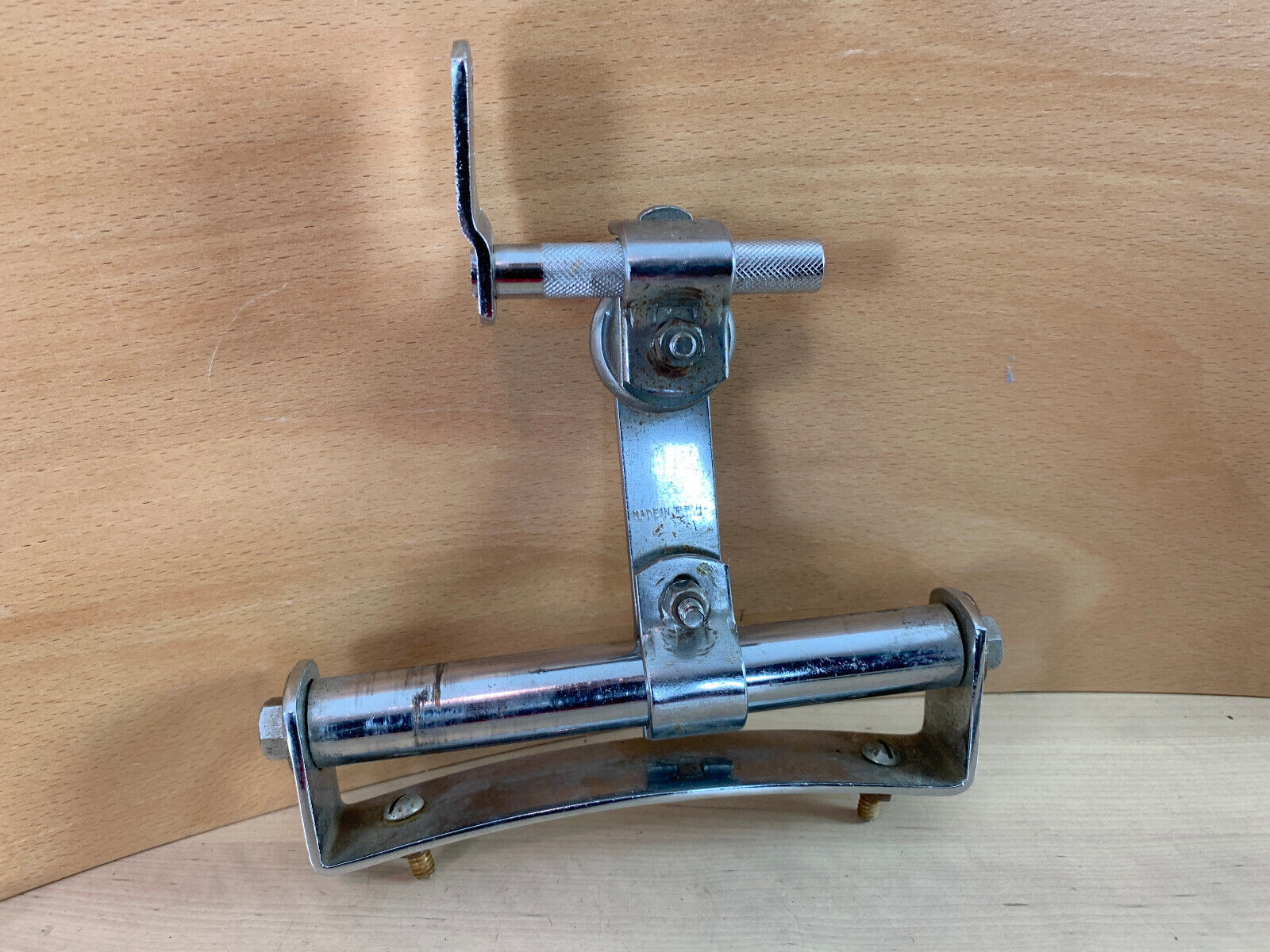

Gracy consolette rail mount, 1960s
Gracy consolette rail mount
5"

Gretsch

Gretsch Gladstone floor tom leg bracket
Gretsch Gladstone floor tom leg bracket, 1950s
Gretsch Gladstone floor tom leg bracket
2", though as this is a split design it will work with any hole spacing. Fits 3/8" diameter legs.
Gretsch diamond floor tom leg bracket
Gretsch diamond floor tom leg bracket, 1950s-70s. These were also used in the early 1970s as rack tom arm brackets.
Gretsch diamond floor tom leg bracket
3", most of these fit 3/8" diameter legs/arms. Early 70s versions fit 7/16" diameter legs/arms.
Gretsch 9011 spur bracket
Gretsch 9011 spur brackets, 1980s
Gretsch 9011 spur bracket hole spacing
1 5/16"
Gretsch 9020 bracket
Gretsch 9020 bracket

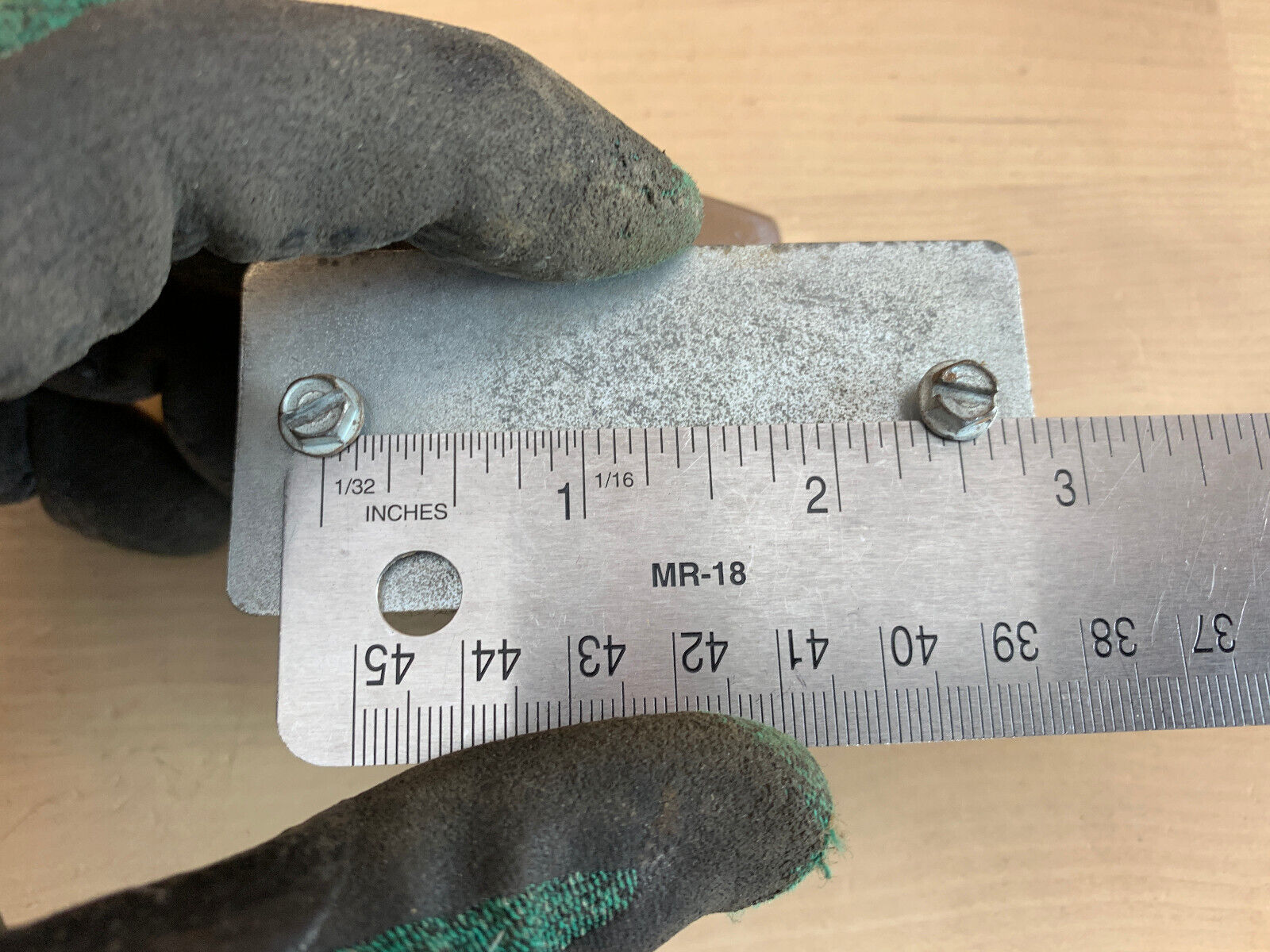

Gretsch Techware G9020 bracket mount
2 1/2", fits a 1/2" diameter arm/leg

Hayman

Hayman cymbal arm floor tom leg bracket
Hayman Vibrasonic cymbal arm/floor tom leg bracket, 1970s
Hayman cymbal arm floor tom leg bracket
1 5/8", fits a 3/8" diameter arm/leg

Hoshino Kougyou

Hoshino Kougkyou K floor tom leg bracket
Hoshino Kougyou floor tom leg bracket, 1960s
Hoshino Kougkyou K floor tom leg bracket hole spacing
40mm, fits a 7/16" diameter leg
Hoshino Kougyou cymbal arm bracket
Hoshino Kougyou cymbal arm bracket, 1960s
Hoshino Kougyou cymbal arm bracket
55mm, fits a 3/8" diameter arm

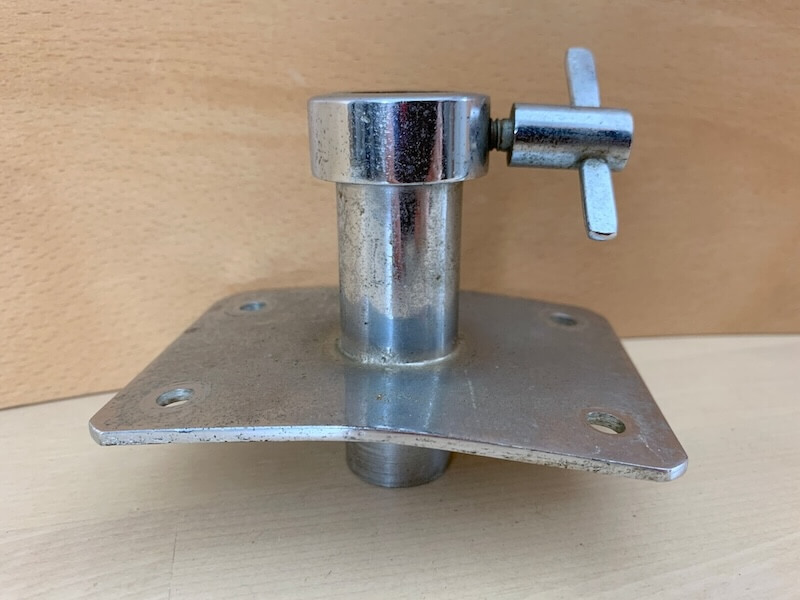

Hoshino Kougyou K tom post mount 1970s

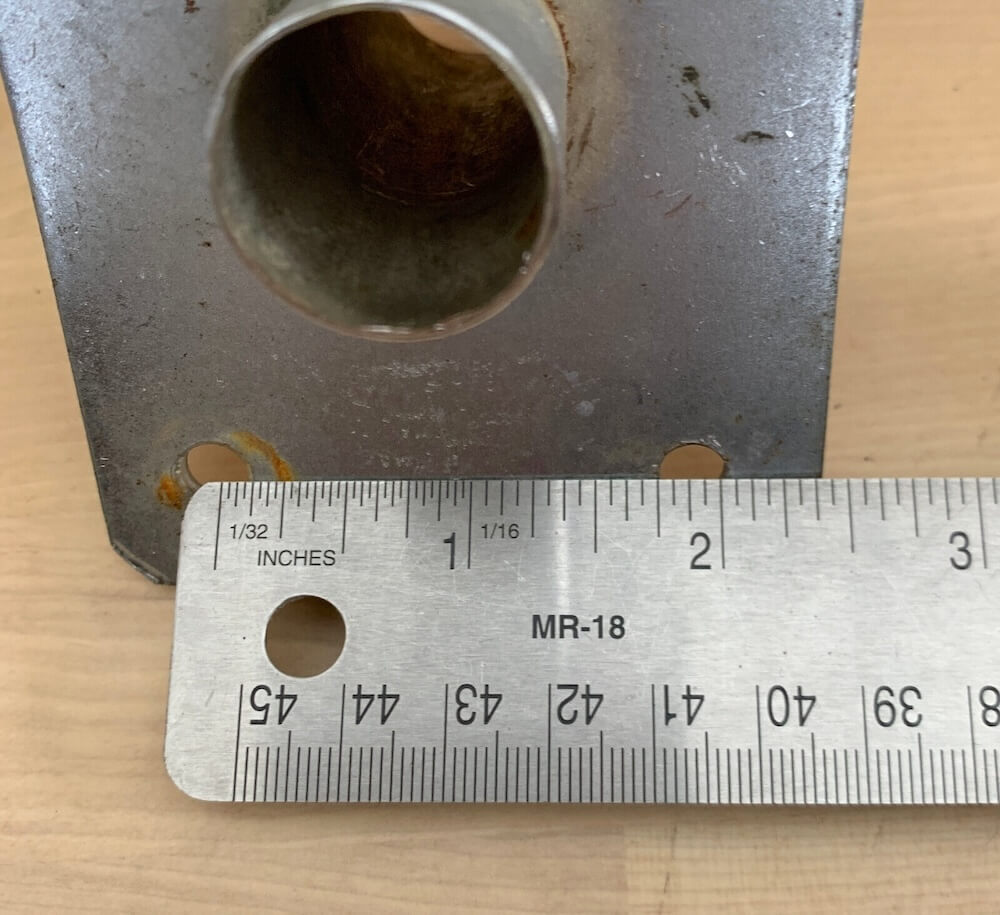

Hoshino Kougyou tom post bracket, 1970s

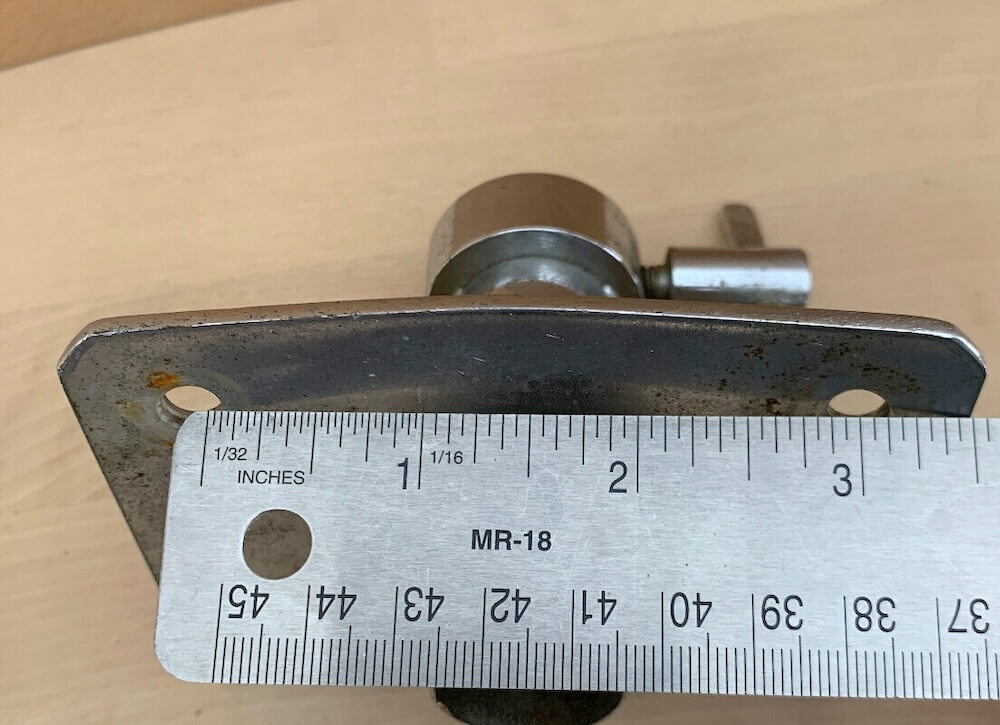

Hoshino Kougyou K tom post mount 1970s hole spacing
3-1/16", fits a 3/4" diameter post
Hoshino Kougyou K tom post mount 1970s hole spacing
1-7/8"

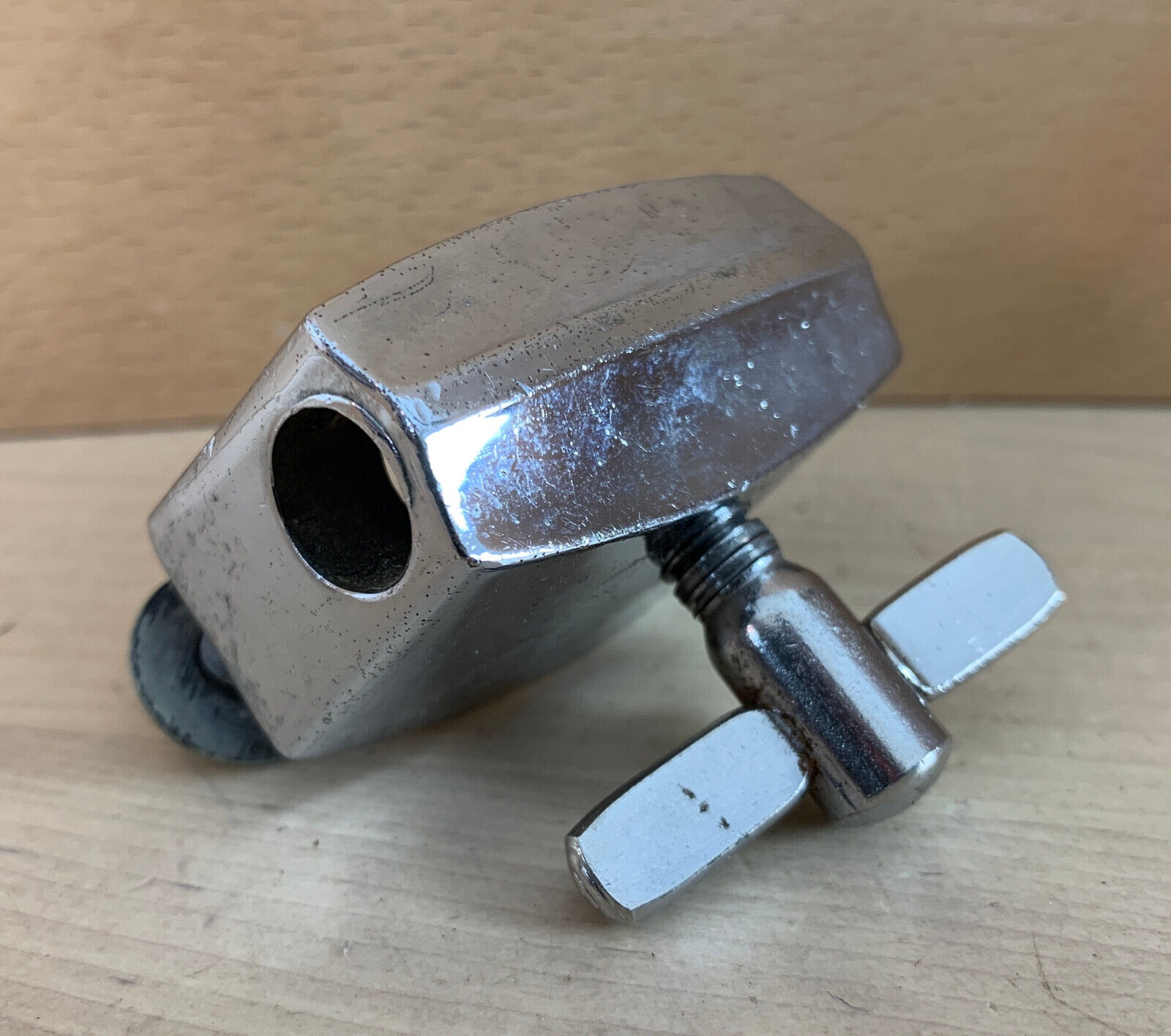

Hoshino Kougyou floor tom leg bracket

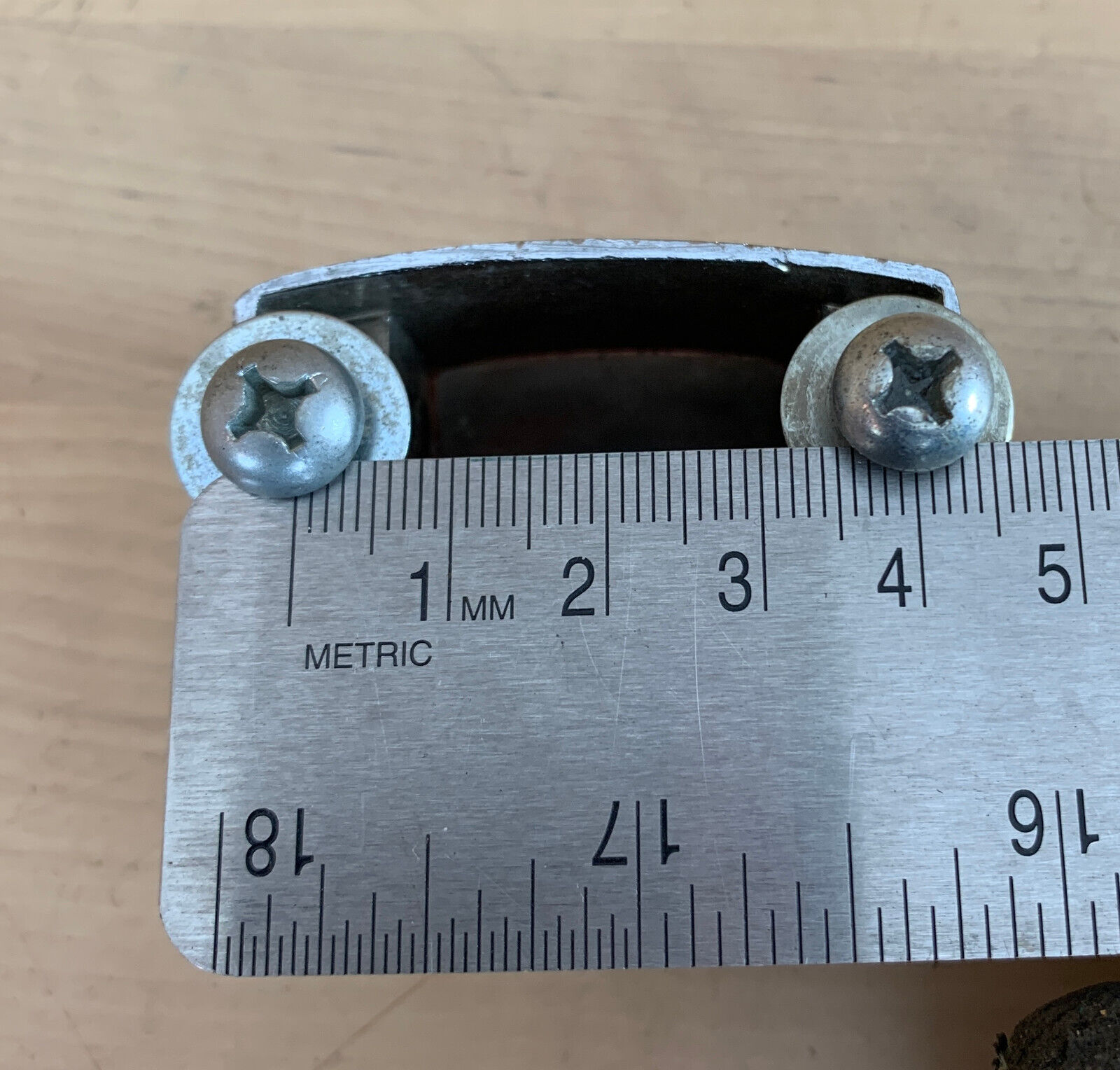

Hoshino Kougyou floor tom leg bracket, 1980s
Hoshino Kougyou floor tom leg bracket
1 13/16", fits a 3/8" diameter leg
Hoshino Kougyou tom post bracket
Hoshino Kougyou tom post bracket, 1970s-80s
Hoshino Kougyou tom post bracket
3 1/2"
Hoshino Kougyou tom post bracket
1 15/16", fits a 1" diameter post
Hoshino Kougyou bass drum spur bracket
Hoshino Kougyou bass drum spur bracket, 1970s-early 80s
Hoshino Kougyou bass drum spur bracket
37mm, fits a 3/8" diameter spur rod.

Kent

Kent floor tom leg bracket
Kent floor tom leg brackets, 1950s-early 60s
Kent floor tom leg bracket
3 3/16", fits a 3/8" diameter leg

Leedy, Leedy & Ludwig

Leedy & Ludwig cymbal arm bracket
Leedy & Ludwig cymbal arm bracket, 1950s. Found on the knob tension kits.
Leedy & Ludwig cymbal arm bracket
2", fits a 3/8" diameter arm
Leedy & Ludwig turret cymbal arm bracket
Leedy & Ludwig turret cymbal arm bracket, 1950s. A clear George Way design and an immediate precursor to the George Way drum company.
Leedy & Ludwig turret cymbal arm bracket
1 13/16, fits a 3/8" diameter arm

Ludwig

ludwig push button floor tom leg bracket 2
Ludwig push button floor tom leg bracket, 1950s-early 70s. Originally a WFL design with the same hole spacing.
ludwig push button floor tom leg bracket 2
2 1/4"
Ludwig standard bass drum tom post mount bracket
Ludwig Standard bass drum tom post bracket, late 1960s-70s
Ludwig standard bass drum tom post mount bracket
2 1/4" between all four holes, fits a 5/8" diameter post

Pearl

Pearl fiberglass shell floor tom leg bracket mount
Pearl floor to leg bracket, 1970s
Pearl fiberglass shell floor tom leg bracket mount
2-3/8", fits a 3/8" diameter leg
Pearl floor tom leg bracket
Pearl floor tom leg bracket, 1980s
Pearl floor tom leg bracket
2 3/8", fits a 3/8" diameter leg/arm

Premier, Olympic

Premier floor tom leg bracket 1950s
Premier floor tom leg bracket, 1940s-50s
Premier floor tom leg bracket 1950s
1 5/8", fits 3/8" diameter legs
Premier arm/leg bracket
Premier arm/leg bracket, 1970s-90s
Premier arm/leg bracket
2 1/4", different versions of these fit 3/8" or 7/16" arms/legs

Rogers

Rogers Tower floor tom leg bracket
Rogers Tower floor tom leg bracket, 1960s
Rogers Tower floor tom leg bracket
2", fits a 3/8" diameter leg

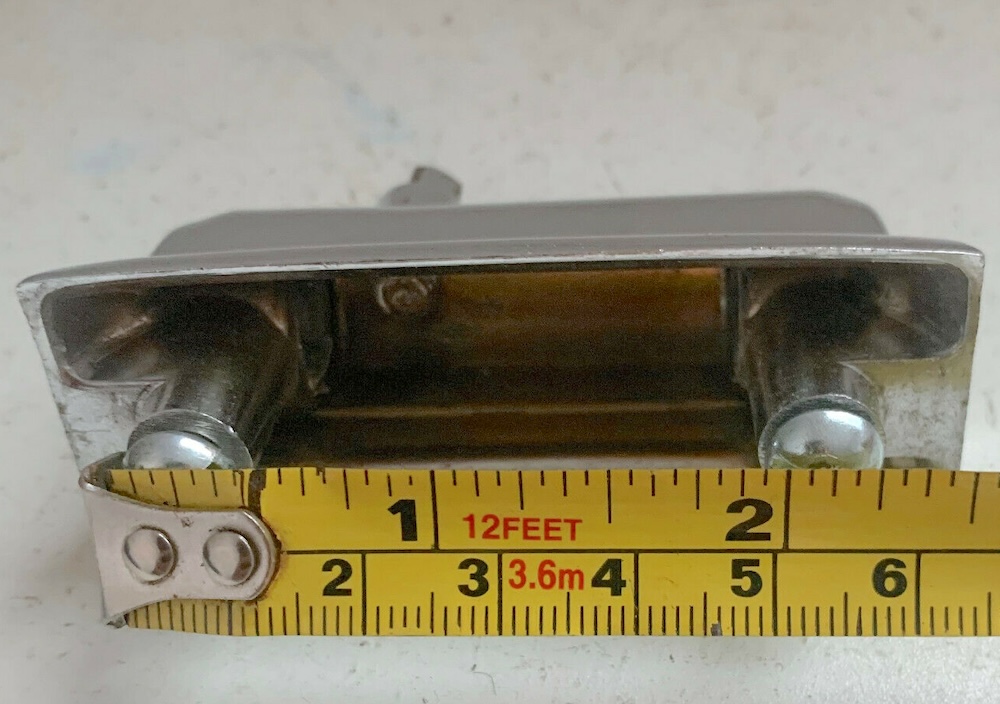

rogers r360 floor tom leg bracket

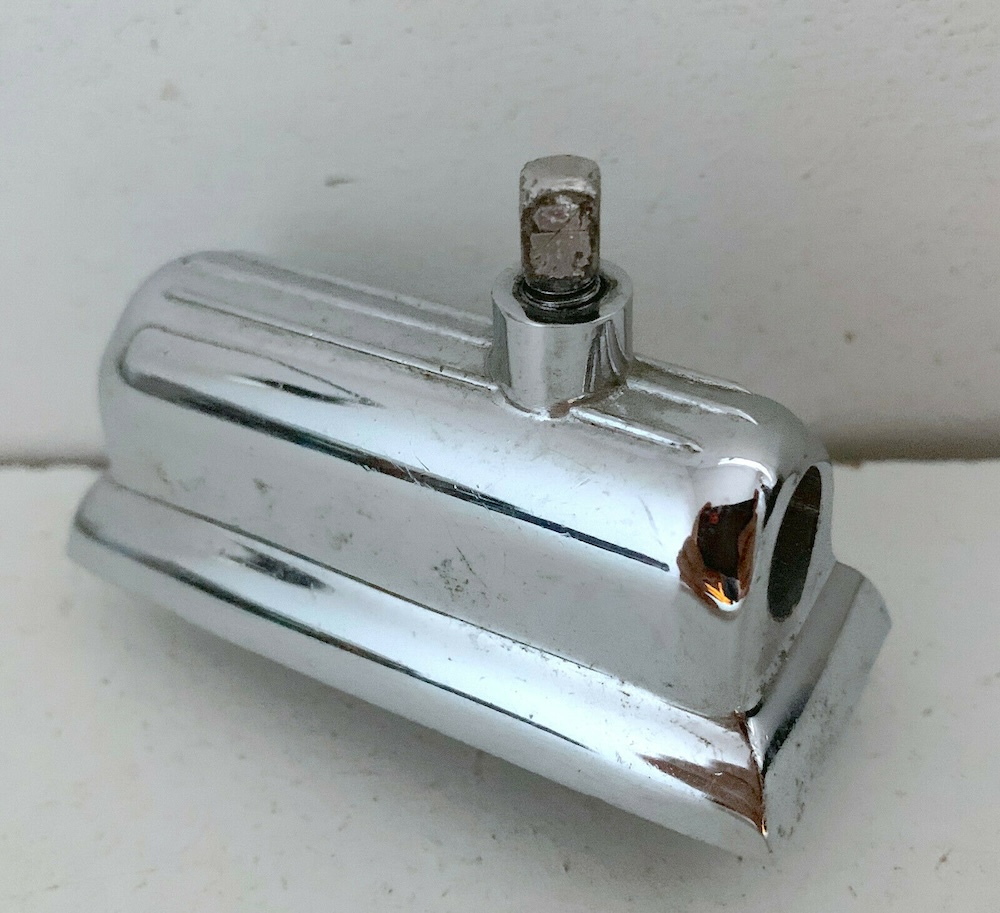

Rogers R360 floor tom leg bracket, 1970s, made by Yamaha
rogers r360 floor tom leg bracket
1-15/16", fits a 3/8" diameter leg

Slingerland

Slingerland radio king floor tom leg bracket
Slingerland Radio King floor tom/bass drum leg bracket, 1940s-50s
Slingerland radio king floor tom leg bracket hole spacing
There are at least two versions of this part, with slightly different hole spacing. This one is 2-5/8". Fits a 3/8" diameter leg/spur.
Slingerland Radio King bass drum cymbal arm bracket
Slingerland Radio King bass drum cymbal arm bracket, 1940s-50s
Slingerland Radio King bass drum cymbal arm bracket
3 1/2", fits a 3/8" diameter arm
Slingerland arm leg bracket
Slingerland tom leg/bass drum cymbal arm bracket, 1950s-70s
Slingerland arm leg bracket
2 1/4", fits 3/8" diameter arms/legs.
Slingerland Super Setomatic bass drum tom post bracket mount

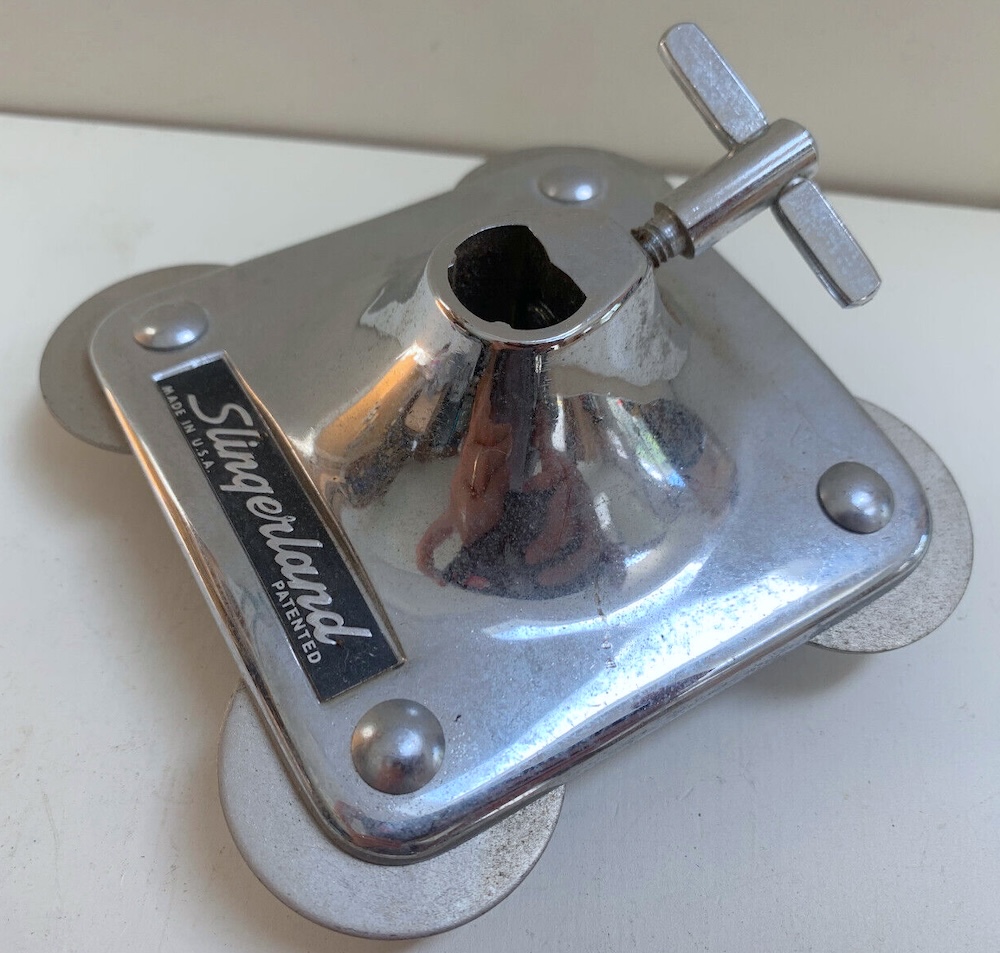

Slingerland Super Setomatic tom post bracket, late 1960s-70s

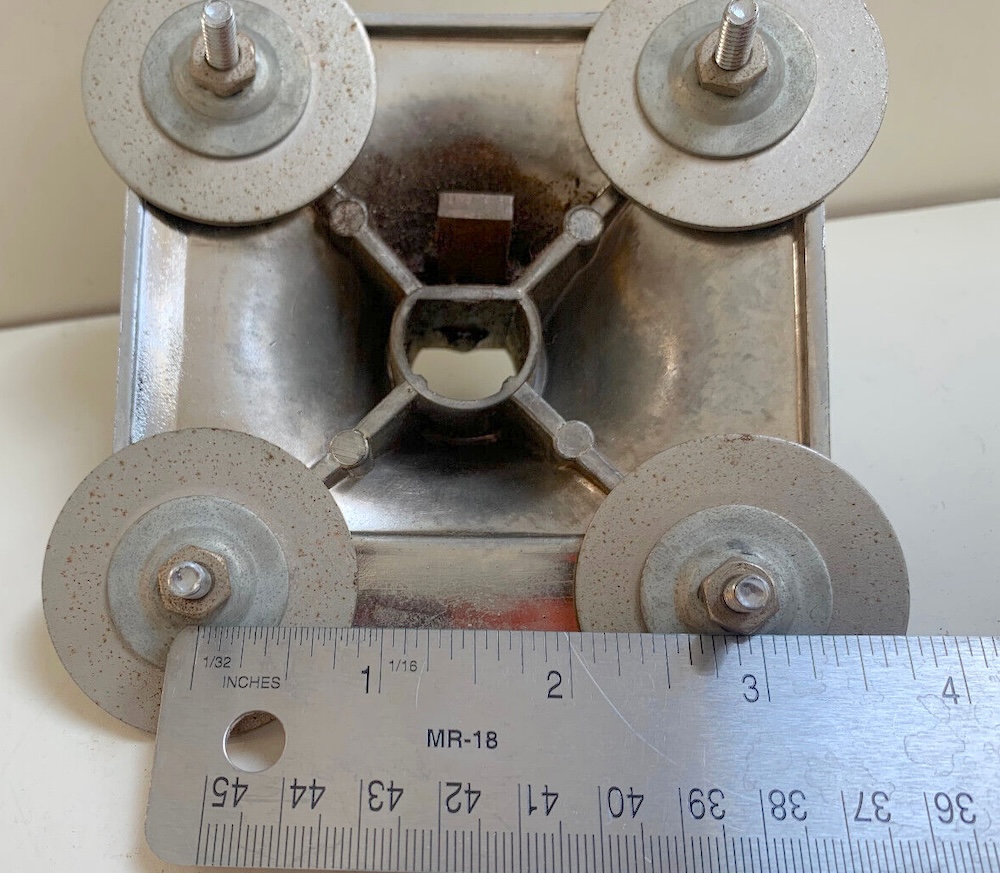

Slingerland Super Setomatic bass drum tom post bracket mount
2-7/8" between all four holes. Fits a 5/8" diameter post with a notch.

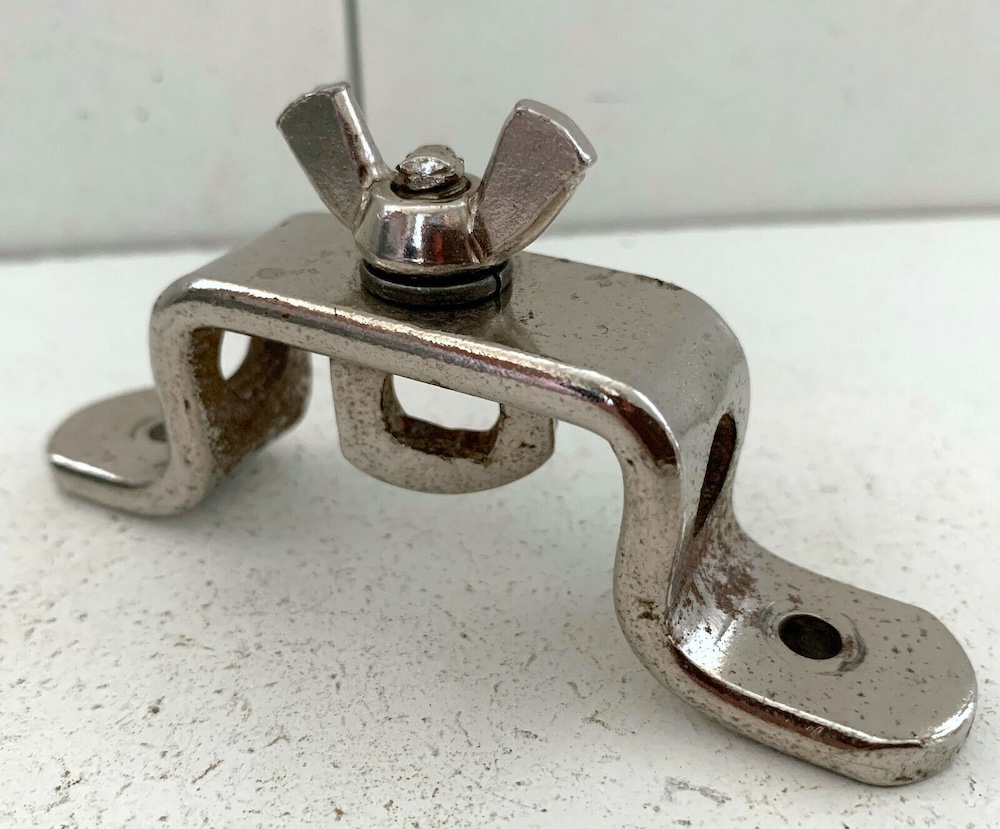

slingerland double rack tom clip slide bracket 70s 1

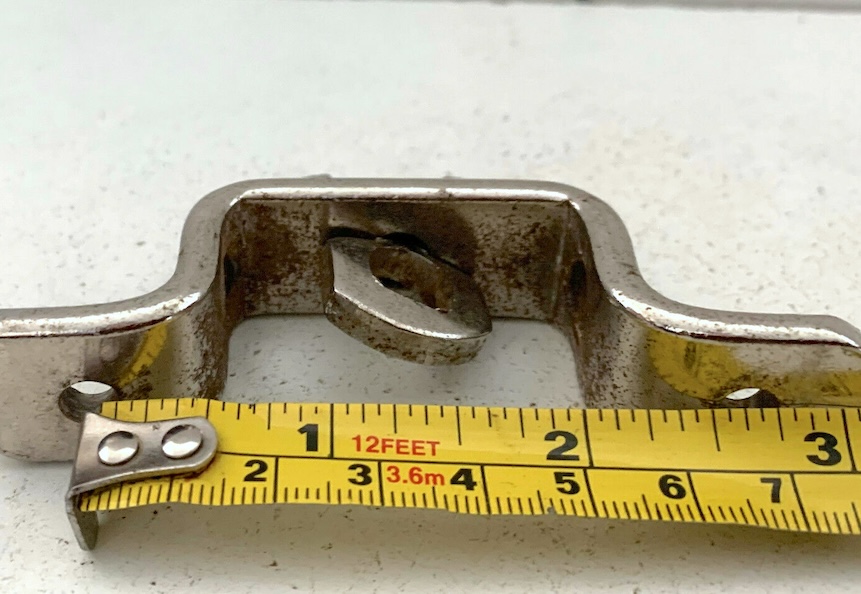

Slingerland double slide clip from a 1970s concert tom or marching tenor
slingerland double rack tom clip slide bracket 70s 1
1 1/4" hole spacing on each side, 2 3/4" between the two sides

Sonor

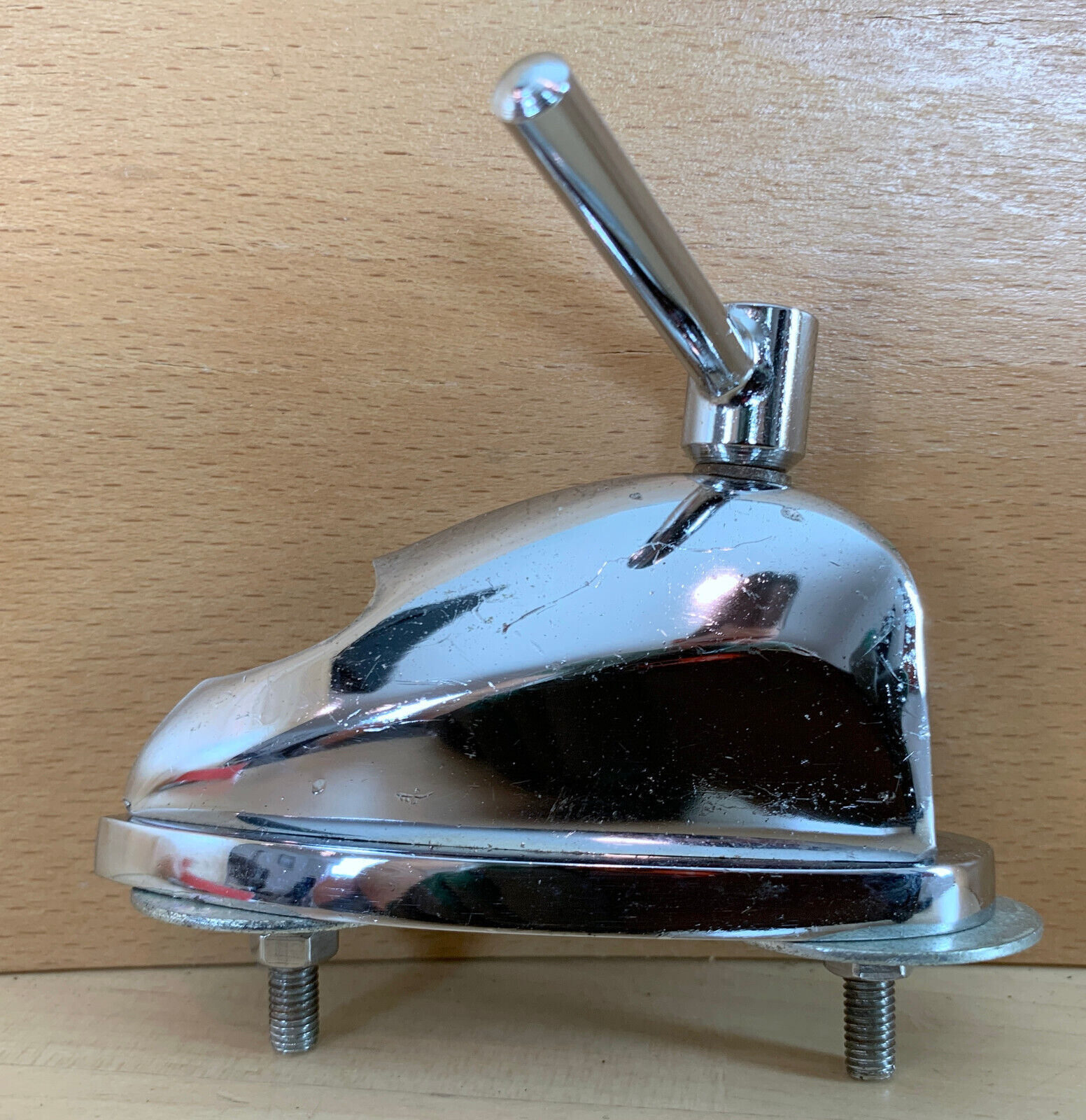

Sonor 60s floor tom leg bracket mount

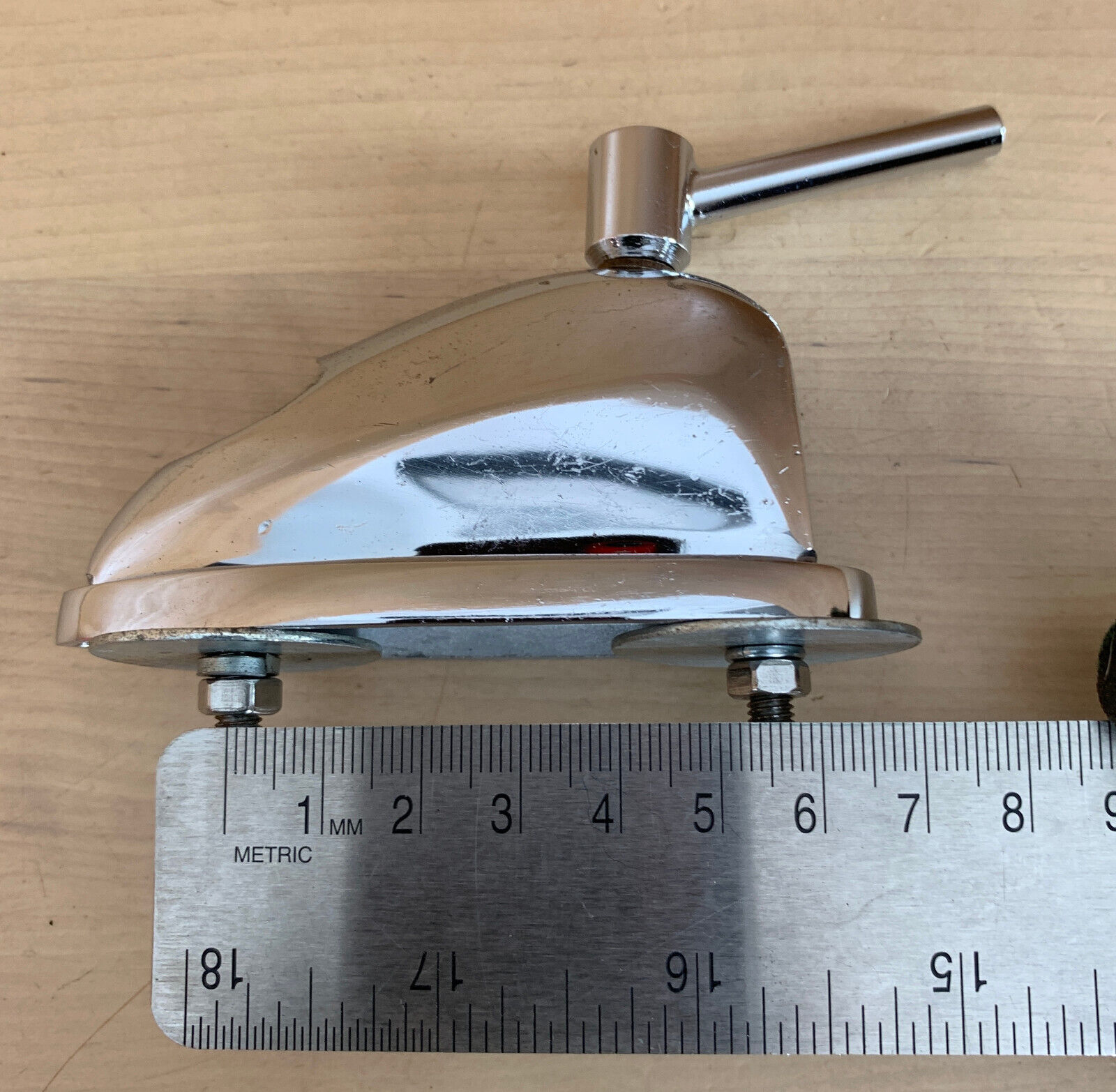

Sonor floor tom leg bracket, 1960s-early 70s
Sonor 60s floor tom leg bracket mount hole spacing
55mm, fits a 3/8" diameter leg

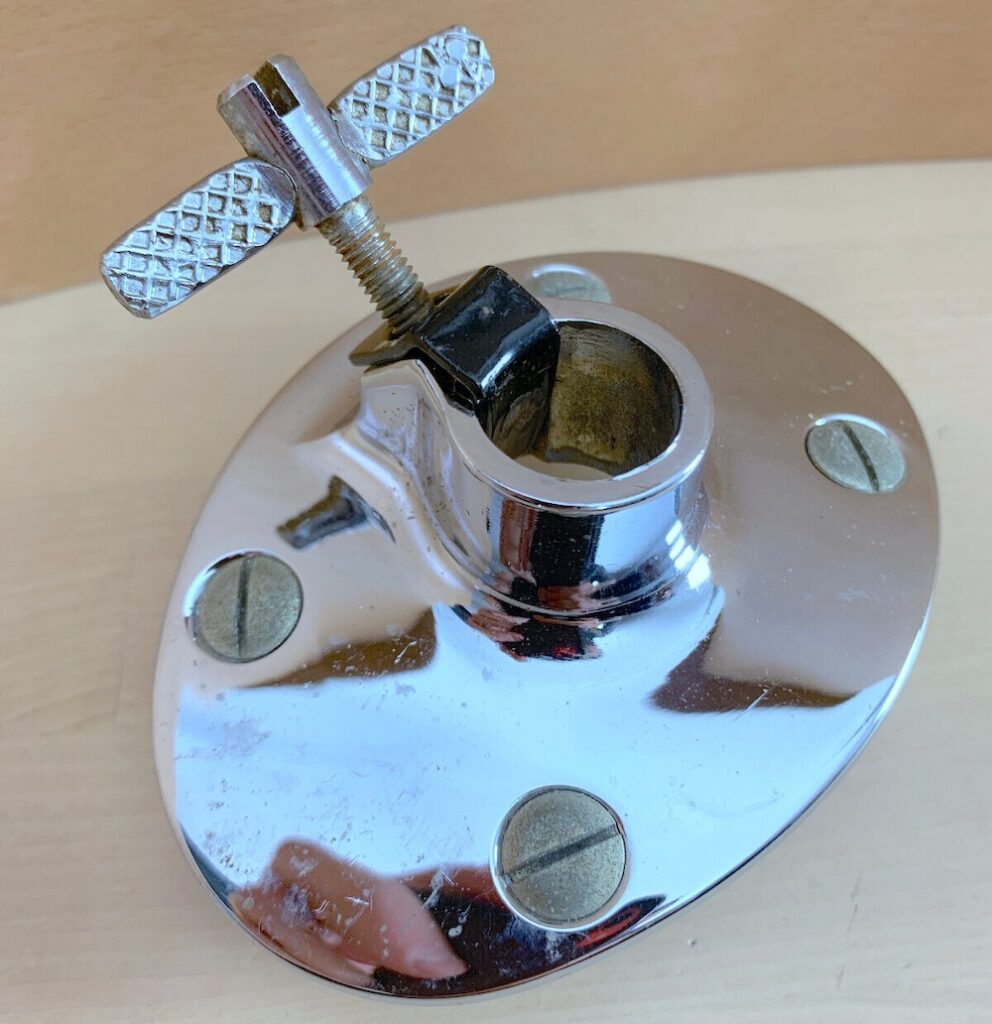

Sonor Champion tom post mount bracket

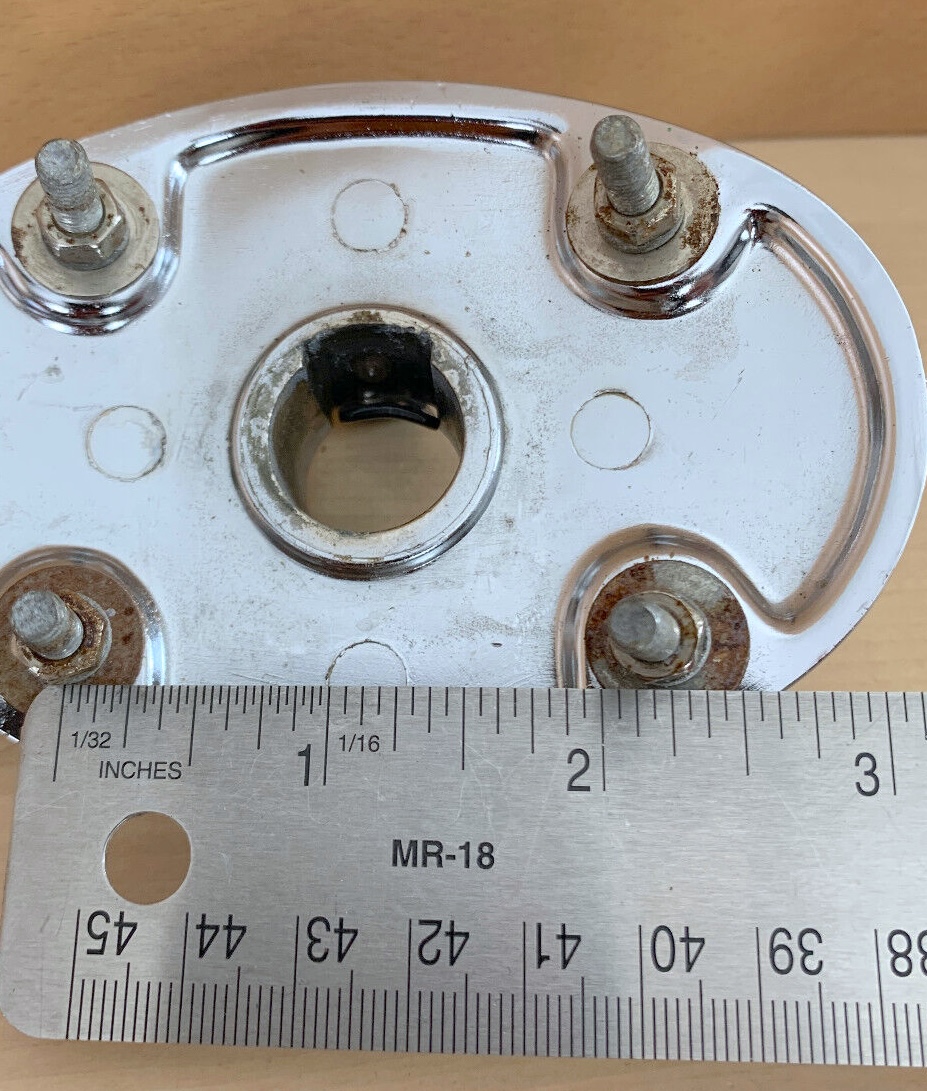

Sonor Champion tom post bracket, 1970s

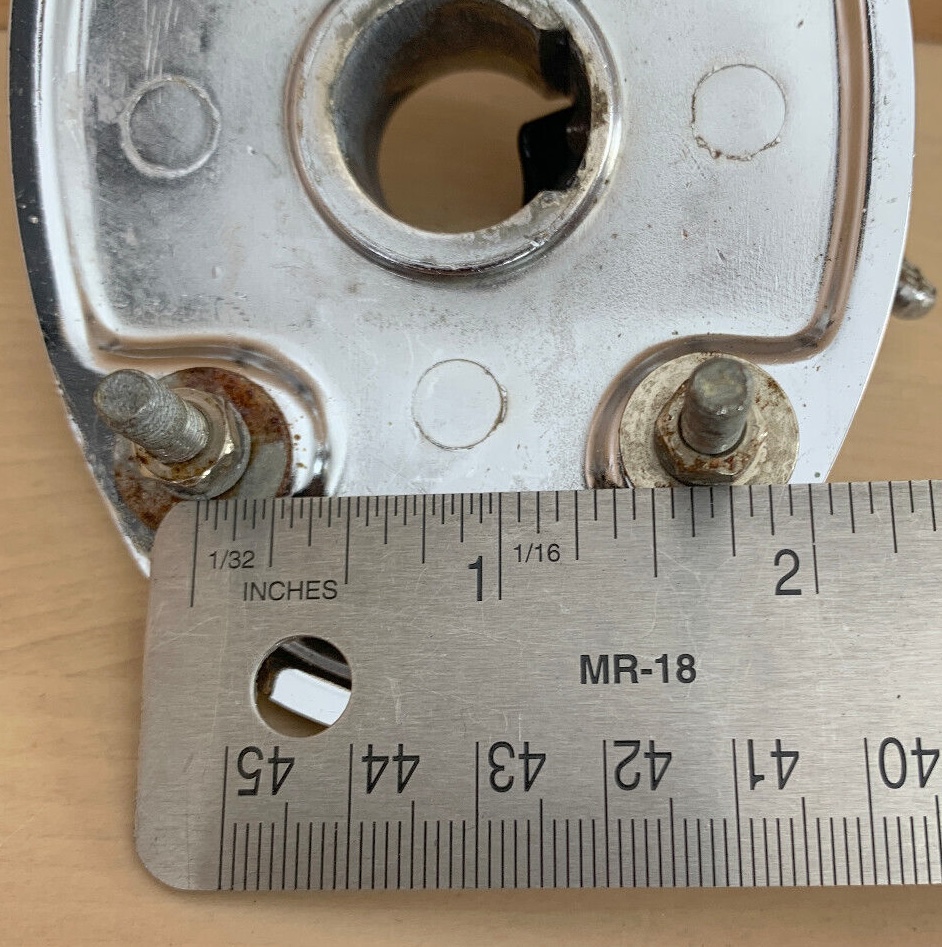

Sonor Champion tom post mount bracket hole spacing
2-3/16", fits a 3/4" diameter post
Sonor Champion tom post mount bracket hole spacing
1-11/16"
Sonor Champion floor tom leg bracket mount

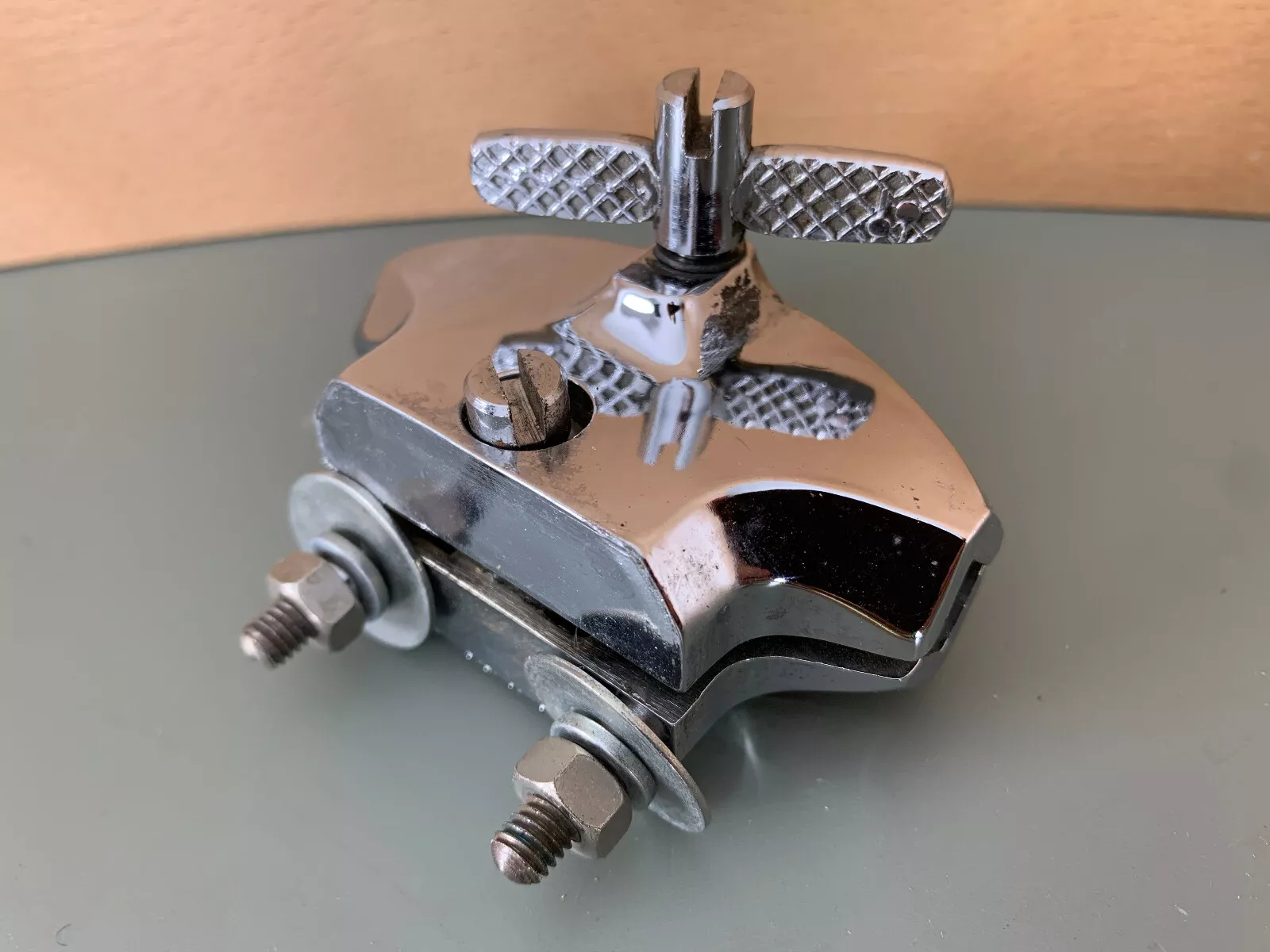

Sonor Champion floor tom leg bracket, 1970s

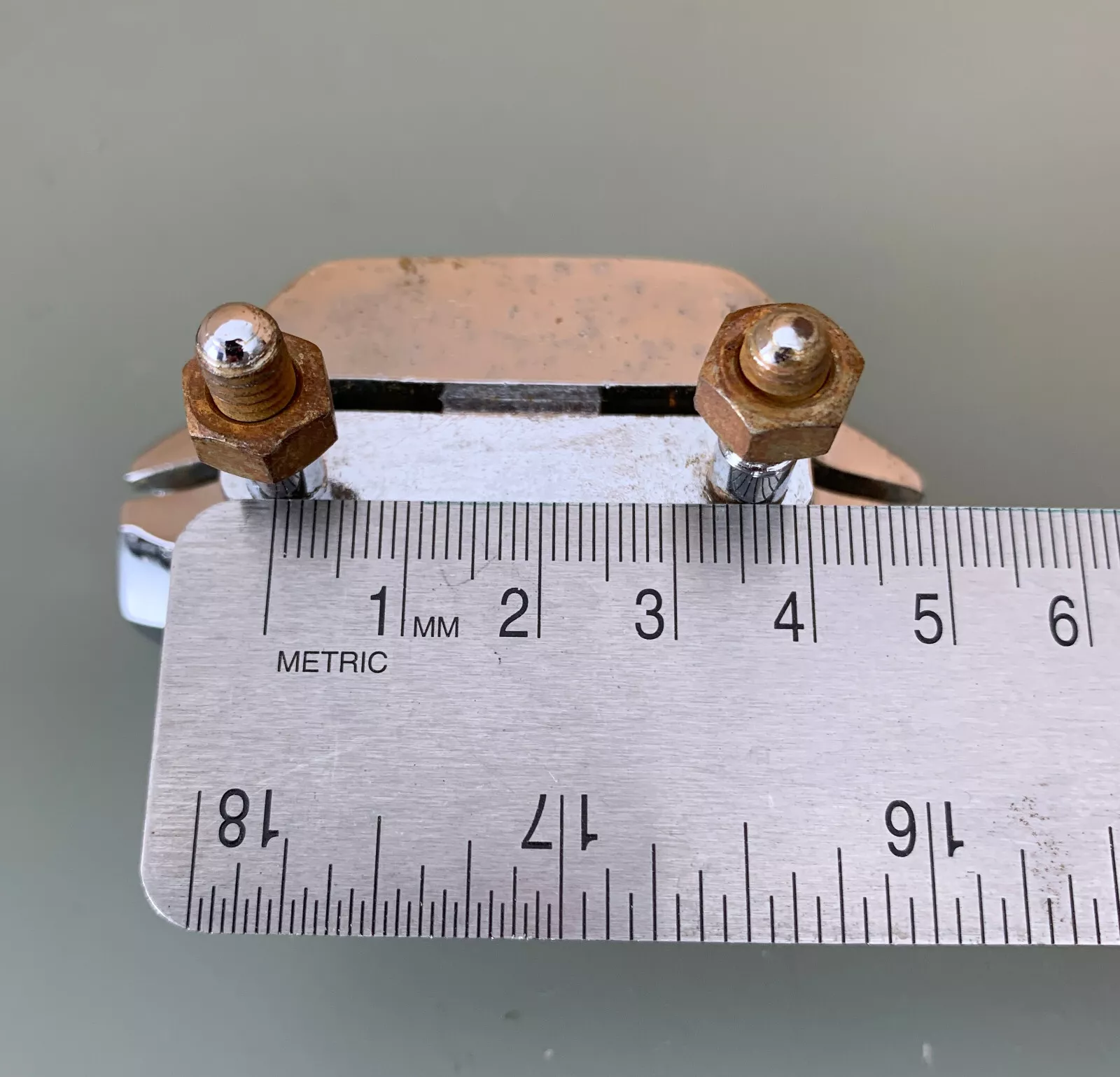

Sonor Champion floor tom leg bracket mount hole spacing
35mm, fits a 3/8" diameter leg
Sonor Swinger rack tom bracket mount

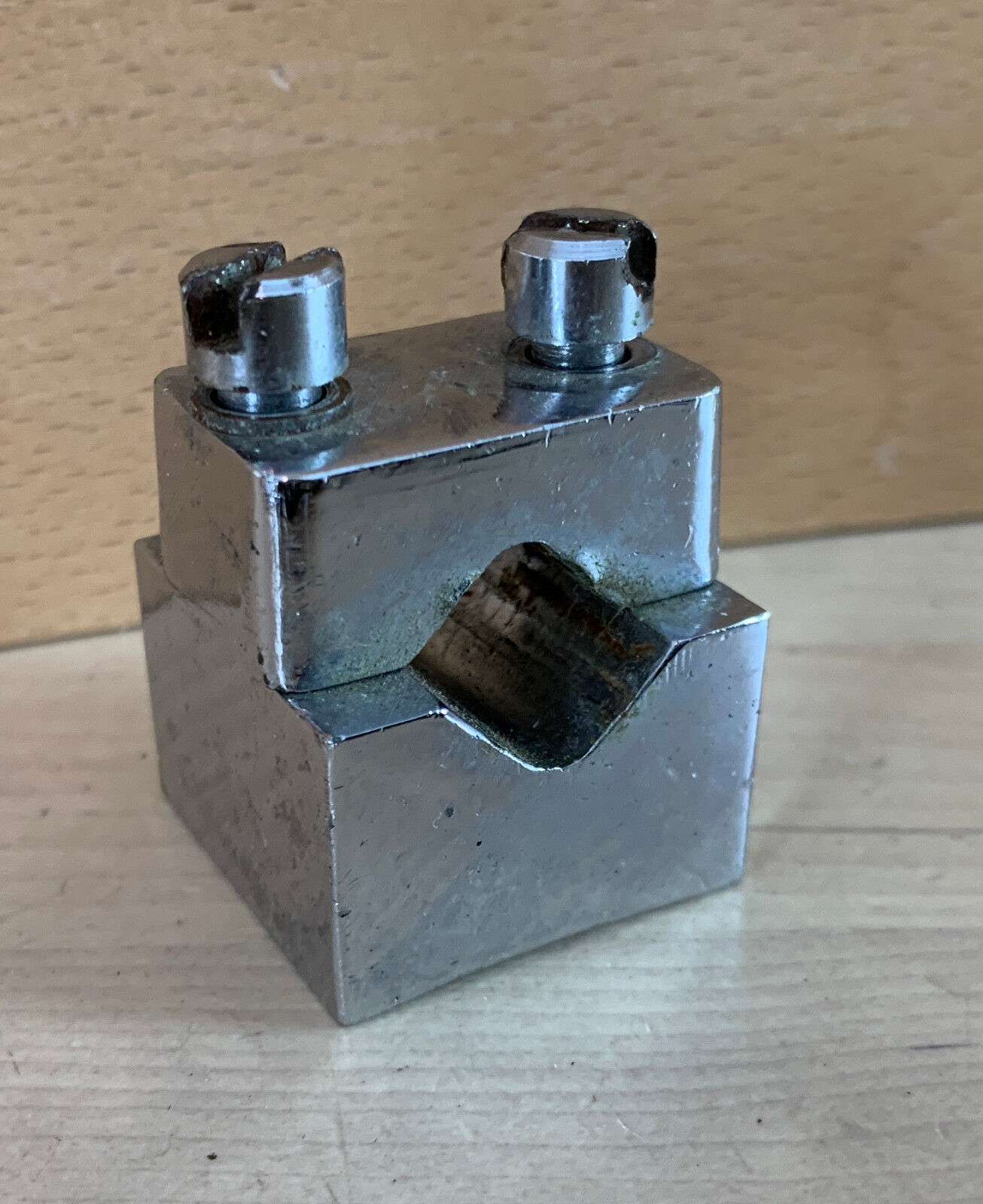

Sonor Swinger rack tom bracket, 1970s

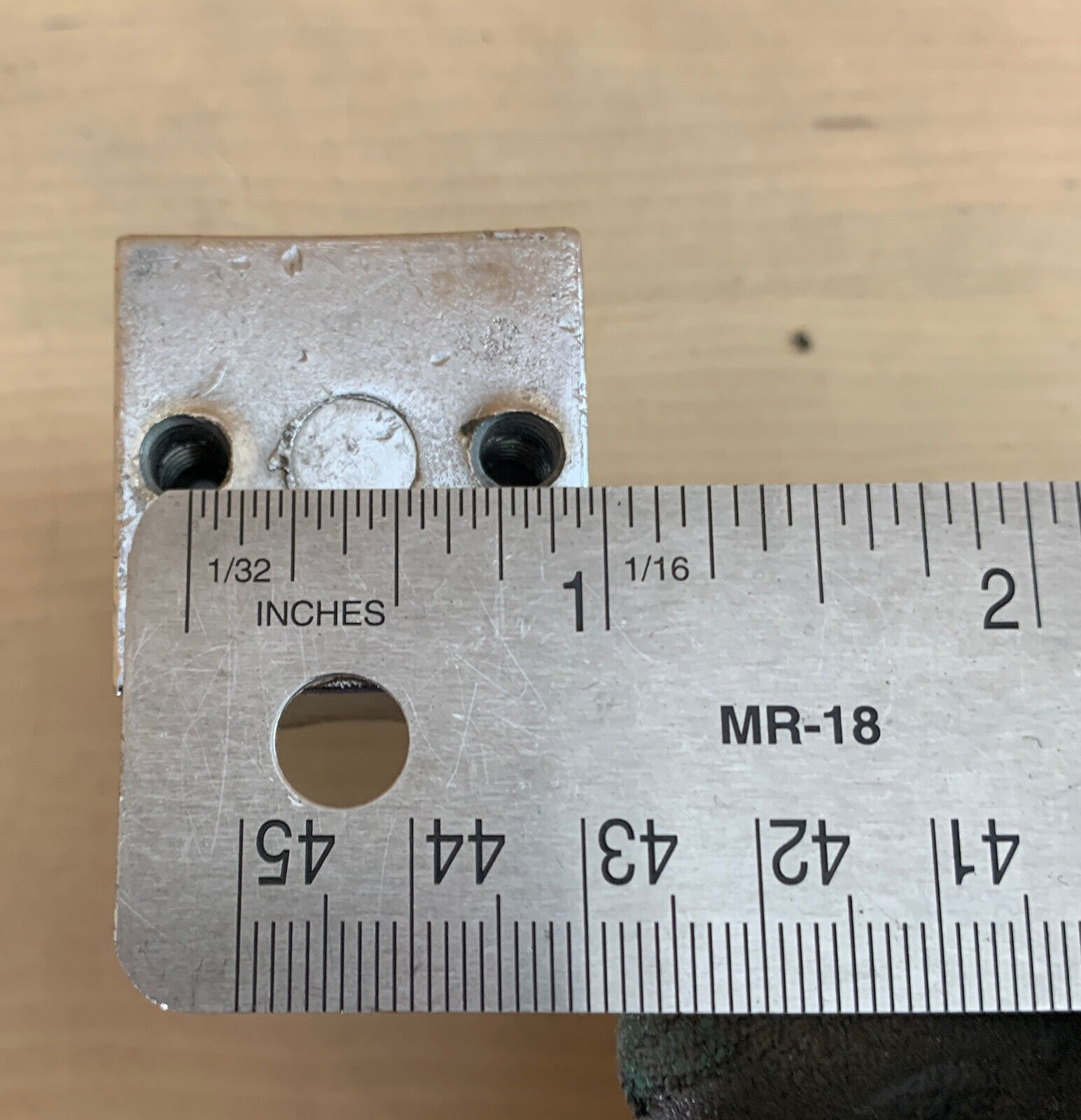

Sonor Swinger rack tom bracket mount hole spacing
13/16", fits a 7/16" diameter L-arm

Tama, Star, Hoshino Gakki

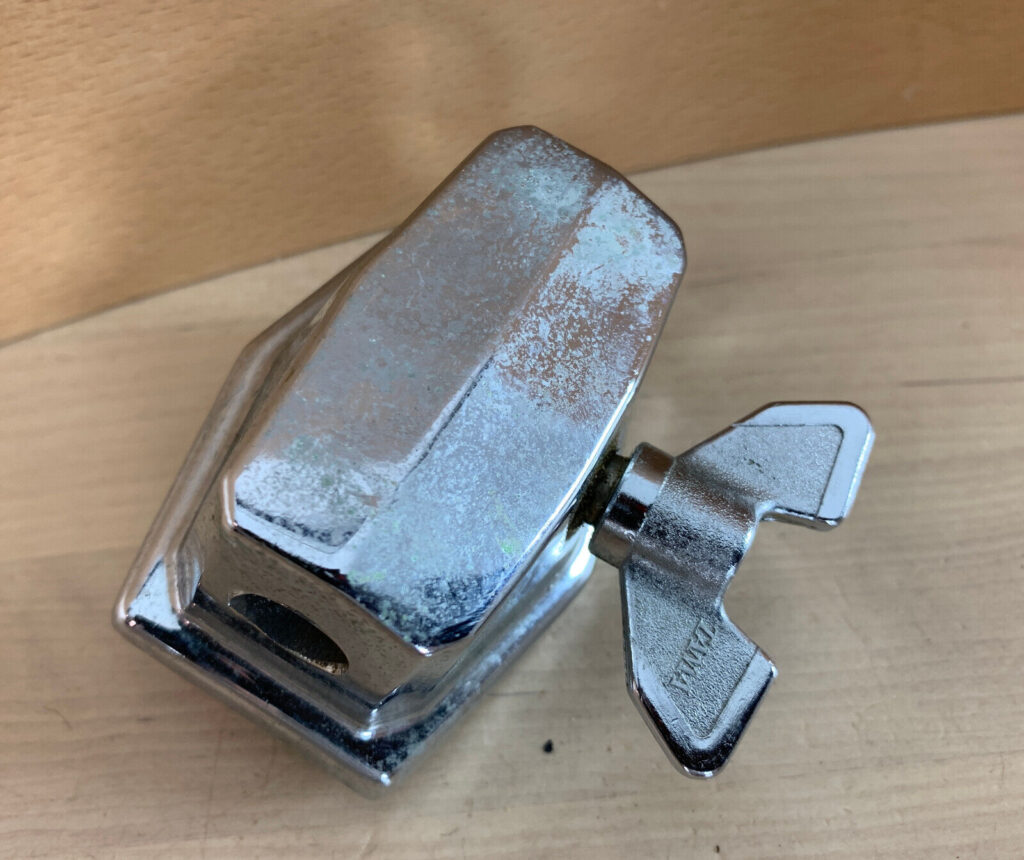

Tama SuperStar floor tom leg bracket mount 80s
Tama SuperStar and ImperialStar floor tom leg bracket, 1980s-early 90s
Tama SuperStar floor tom leg bracket mount 80sTama SuperStar floor tom leg bracket mount 80sTama SuperStar floor tom leg bracket mount 80s hole spacing
52mm, fits a 7/16" diameter arm.

WFL

WFL Ray Bauduc rack tom bracket
WFL Ray Bauduc rack tom bracket, 1930s-early 40s. These were used with primitive short post arms that clamped onto a rail system on the bass drum.
WFL Ray Bauduc rack tom bracket
1 1/2", fits a 3/8" diameter post which goes through the shell
WFL Cymbal arm bracket
WFL Cymbal arm bracket, 1950s
WFL Cymbal arm bracket
2 1/2", fits a 3/8" diameter arm

Yamaha

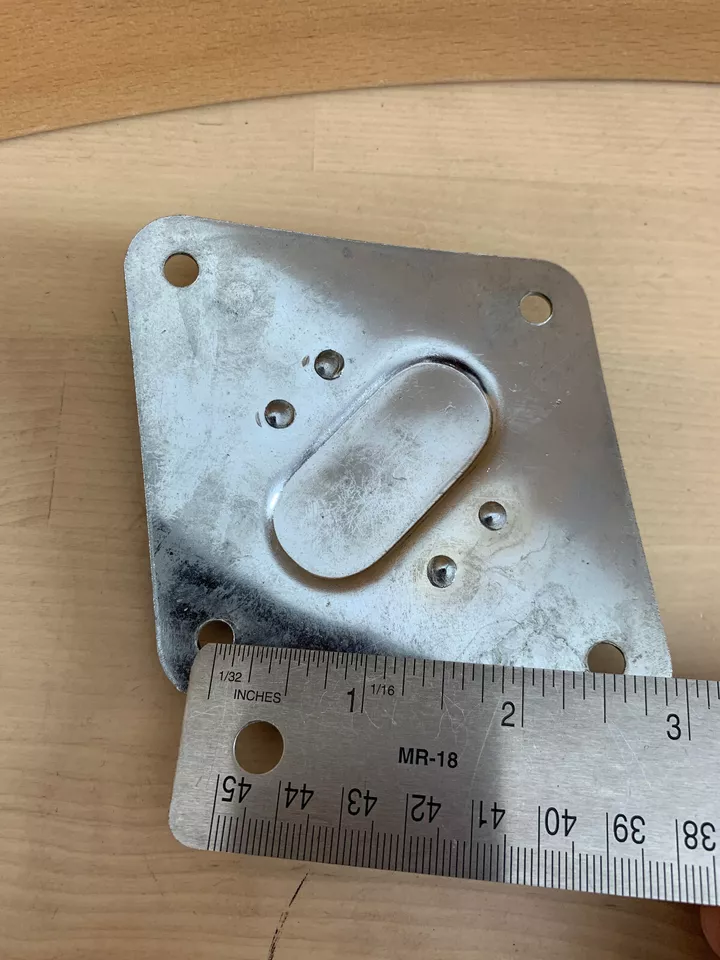

Yamaha 60s rack tom diamond plate bracket mount

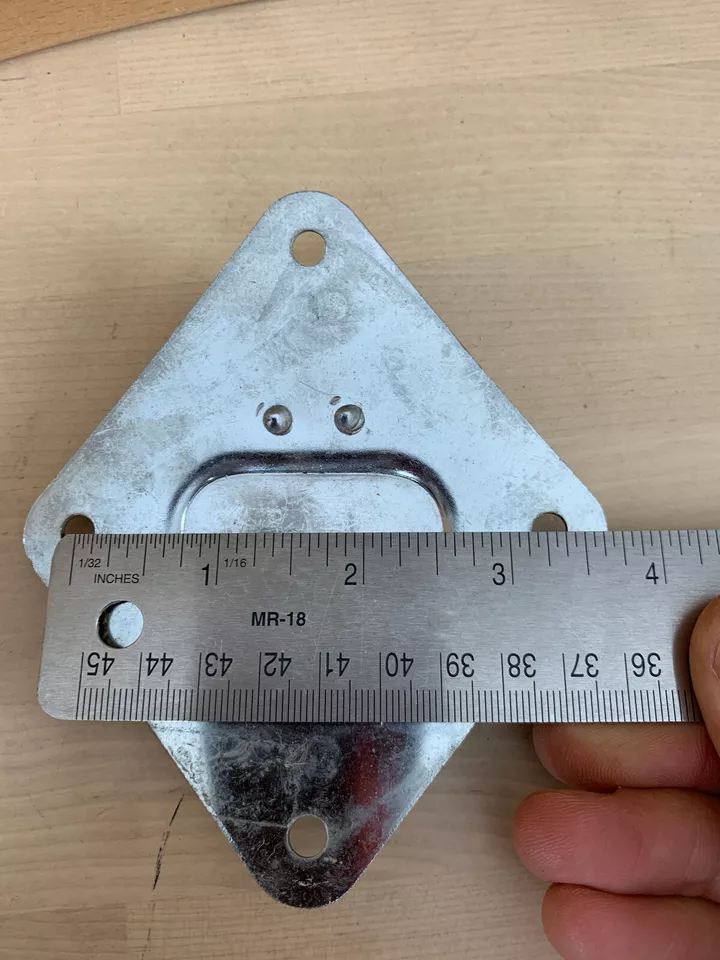

Yamaha diaomond rack tom plate bracket, 1960s
Yamaha 60s rack tom diamond plate bracket mount hole spacing
2-1/2"
Yamaha 60s rack tom diamond plate bracket mount hole spacing
3-1/4"
Yamaha floor tom leg bracket, 1960s
Yamaha floor tom leg bracket, 1960s-early 70s
yamaha 60s floor tom leg bracket mount hole spacing
56mm, fits a 3/8" diameter leg/arm
Yamaha 1960s offset single tom post bracket
Yamaha offset tom post bracket, 1960s-early 70s
Yamaha 1960s offset single tom post bracket
3 5/8"
Yamaha 1960s offset single tom post bracket
1 3/8"
Yamaha 9000 Recording Custom floor tom leg bracket
Yamaha Tour, Recording Custom floor tom leg bracket, 1980s-90s
Yamaha 9000 Recording Custom floor tom leg bracket
2 1/4"

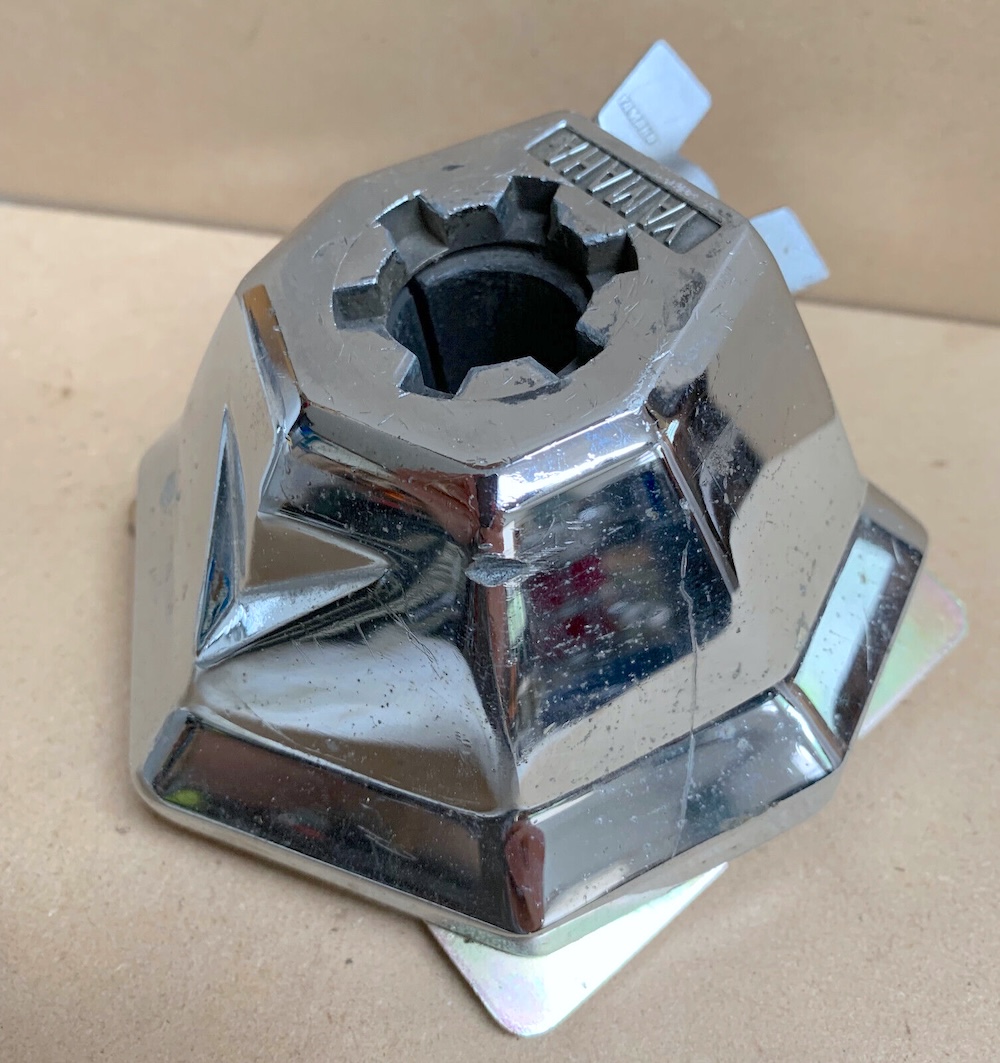

Yamaha Power V bass drum tom post bracket mount

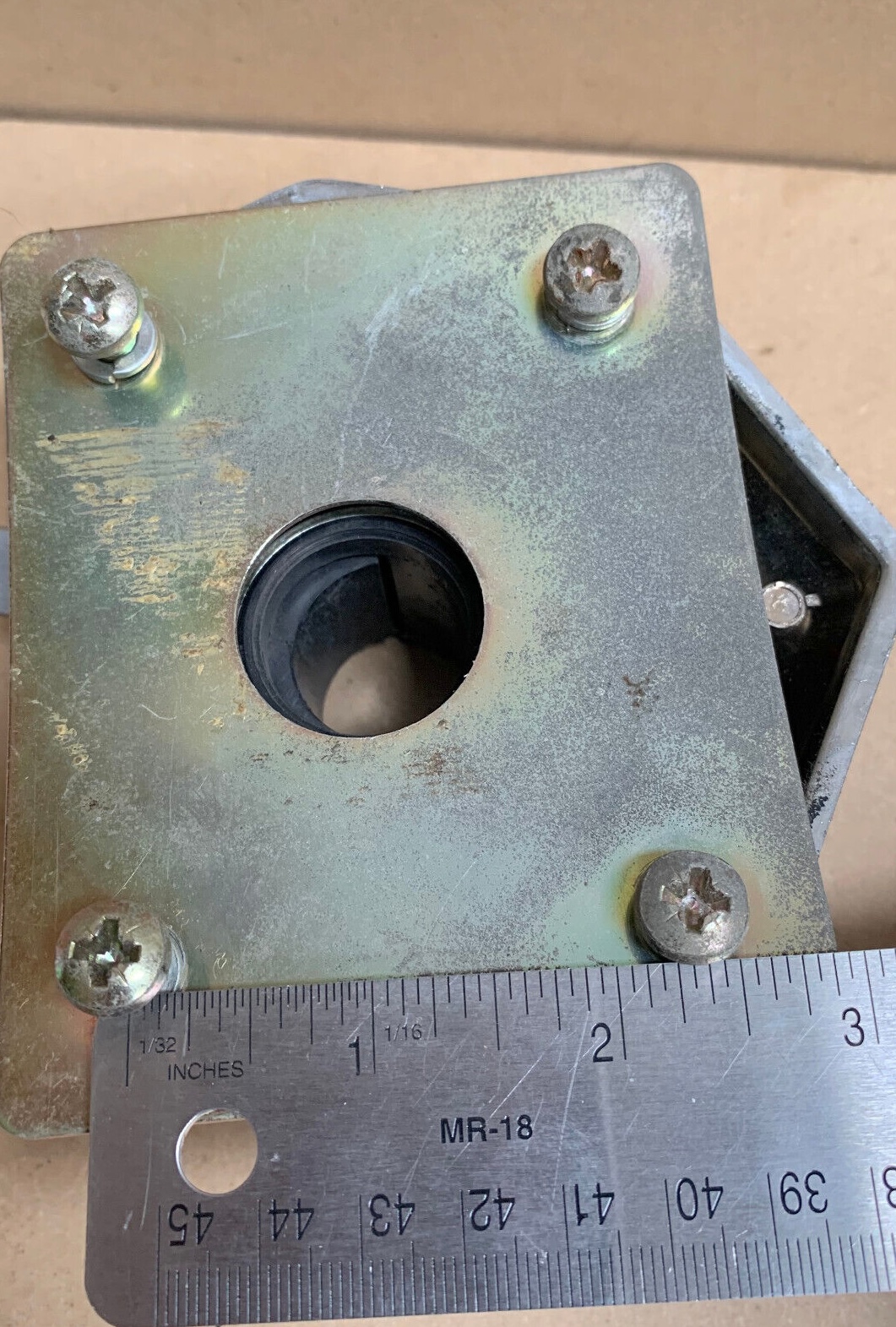

Yamaha Power V tom post bracket, UK made, late 1980s-early 90s

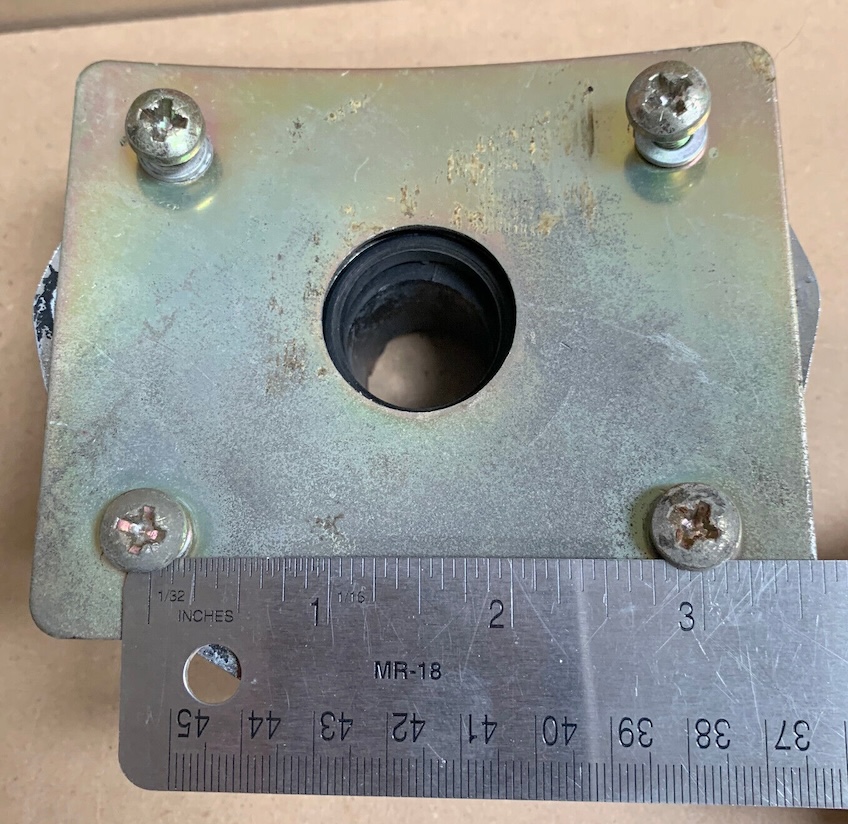

Yamaha Power V bass drum tom post bracket mount hole spacing
3", fits a 7/8" diameter post
Yamaha Power V bass drum tom post bracket mount hole spacing
2-3/8"
